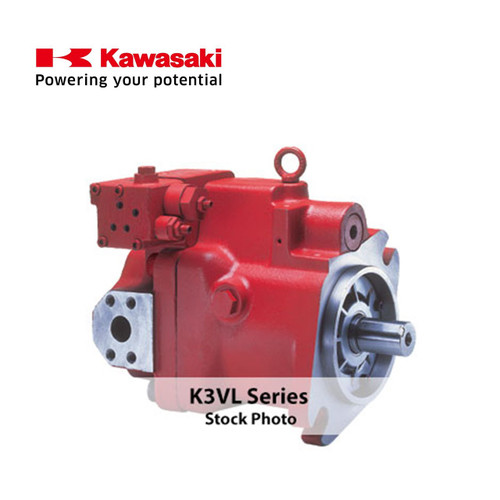

Kawasaki Piston Pump K3VL80/B-1NLKS-P0

Kawasaki Piston Pump – K3VL80/B-1NLKS-P0 is a K3VL series variable-displacement axial piston pump, 80 cc/rev for open-circuit use, set with pressure cut‑off control and rated pressure 320 bar.

Specifications:

• Displacement: 80 cc/rev (4.88 in³/rev)
• Rated pressure: 320 bar (≈4,640 psi); Peak pressure: 350 bar (≈5,075 psi)
• Circuit type: Open circuit (code “1”)
• Regulator/control: P0 — Pressure cut‑off
• Direction of rotation: Counter‑clockwise (code “L”)
• Mounting flange & shaft: SAE key & mount (code “K”)
• Through drive & porting: Single pump with steel cover, side ported (code “N”)
• Port threads: UNC (code “S”)
• Design series: B

Common Applications:

• Off‑highway equipment needing pressure‑compensated flow
• Industrial power units and machinery
