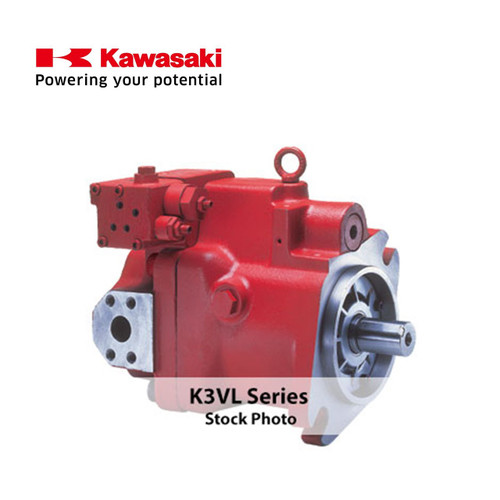

Kawasaki Piston Pump K3VL28/C-1NRKS-L0

Kawasaki Piston Pump – K3VL28/C-1NRKS-L0 is a K3VL series variable-displacement swash-plate axial piston pump, 28 cc/rev for open-circuit use with load-sense + pressure cut-off control and rated pressure 320 bar.

Specifications:

• Displacement: 28 cubic centimeters per revolution (1.71 cubic inches per revolution)
• Rated pressure: 320 bar (≈4,640 psi); Peak pressure: 350 bar (≈5,075 psi)
• Circuit type: Open circuit (code “1”)
• Regulator/control: L0 — Load sense + pressure cut-off (with LS bleed)
• Direction of rotation: Clockwise (code “R”)
• Mounting flange & shaft: SAE key & mount (code “K”)
• Through drive & porting: Single pump with steel cover, side ported (code “N”)
• Port threads: Unified National Coarse (UNC) (code “S”)
• Design series: C

Common Applications:

• Compact construction/off‑highway machines
• Industrial machines requiring medium/high-pressure variable flow
