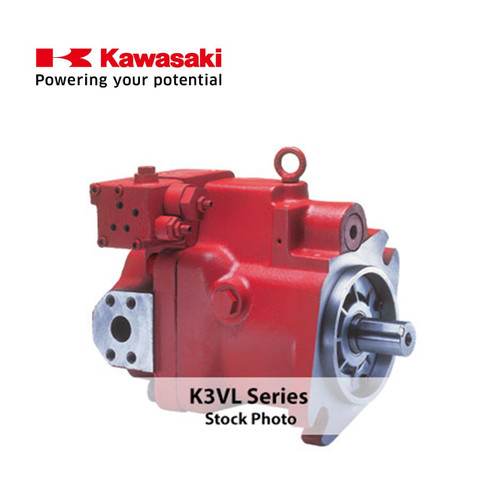

Kawasaki Piston Pump K3VL28/C-10RSS-P0

Kawasaki Piston Pump – K3VL28/C-10RSS-P0 is a K3VL series variable-displacement axial piston pump, 28 cc/rev (1.71 in³/rev) for open-circuit systems, pressure cut-off (P0) control, clockwise (R) rotation, SAE “A” mount (C series), and UNC port threads (S).

Specifications:

• Displacement: 28 cc/rev (1.71 in³/rev)
• Rated pressure: 320 bar; Peak pressure: 350 bar
• Circuit type: Open circuit
• Regulator/control: Pressure cut-off (code “P0”)
• Direction of rotation: Clockwise (code “R”)
• Mounting flange & shaft: C series (SAE A / spline or key)
• Through drive & porting: “C” through drive side ported (code “C”)
• Port threads: UNC (code “S”)
• Design series: C

Common Applications:

• Mobile hydraulic systems
• Industrial machinery
