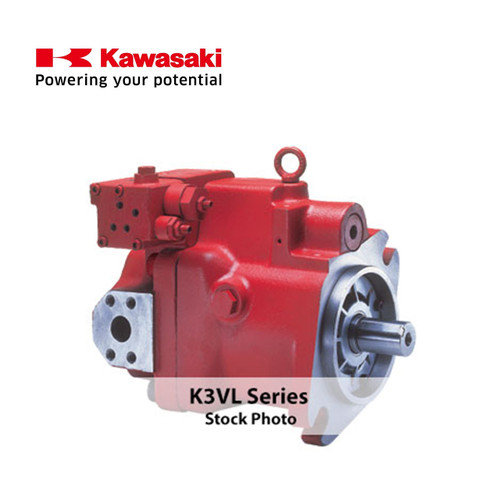

Kawasaki Piston Pump K3VL112/B-1NLMM-L0

Kawasaki Piston Pump – K3VL112/B-1NLMM-L0 is a K3VL series variable-displacement axial piston pump, 112 cc/rev for open-circuit systems with load-sense + pressure cut-off control, counter-clockwise rotation, ISO key mount, and metric ports.

Specifications:

• Displacement: 112 cc/rev (6.83 in³/rev)
• Rated pressure: 320 bar (≈4,640 psi); Peak pressure: 350 bar (≈5,075 psi)
• Circuit type: Open circuit (code “1”)
• Regulator/control: L0 — Load sense + pressure cut-off (with LS bleed)
• Direction of rotation: Counter-clockwise (code “L”)
• Mounting flange & shaft: ISO key & mount (code “M”)
• Through drive & porting: Single pump with steel cover, side ported (code “N”)
• Port threads: Metric threads (code “M”)
• Design series: B

Common Applications:

• Construction and mobile hydraulics
• Industrial hydraulic power units

K3VL Technical Brochure
