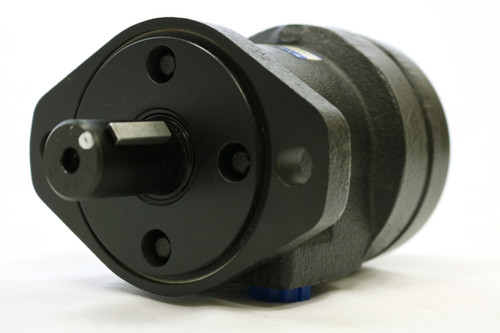

Eaton Char Lynn Hydraulic Motor 101-1039

Char Lynn Hydraulic Motor – 101-1039 delivers reliable medium-duty performance for industrial and agricultural applications requiring high torque at low speeds. With 294 cm³/r displacement and 3,604 in-lbs continuous torque, this motor powers conveyor systems, agricultural equipment, and concrete handling machinery.

Specifications:

• Displacement: 294 cm³/r (17.9 in³/r)
• Flow: 15 GPM Continuous (20 GPM Inter)
• Max. Speed: 1,100 RPM
• Torque: 3,604 in-lbs Continuous (4,600 in-lbs Inter)
• Mount: SAE A 2-Bolt Flange
• Shaft: 1.00" Keyed
• Ports: .875-14 UNF-2B SAE O-Ring
• Seals: Standard
• Genuine Char Lynn 101-1039

Common Applications:

• Agricultural augers, harvesters, and seeders
• Concrete and asphalt equipment
• Conveyors and material handling equipment
